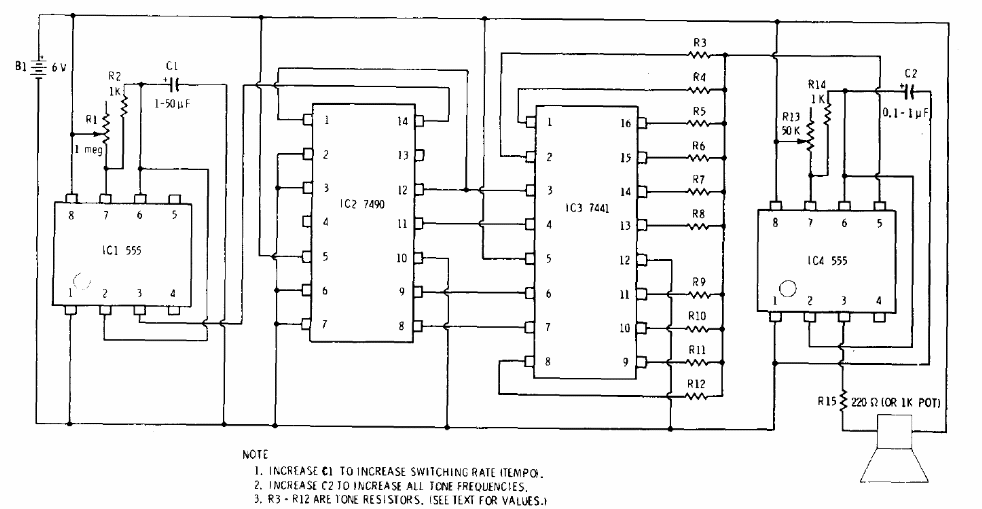

This circuit was obtained in a Radio Shack documentation from 1977. The circuit generates a sequence of sounds programmed by the resistor values from R3 to R12. Values can typically be between 1k and 100k. The circuit is TTL and must be supplied with 5 V, and in the case of the 6 V originally indicated, connect a 1N4002 diode in series.
