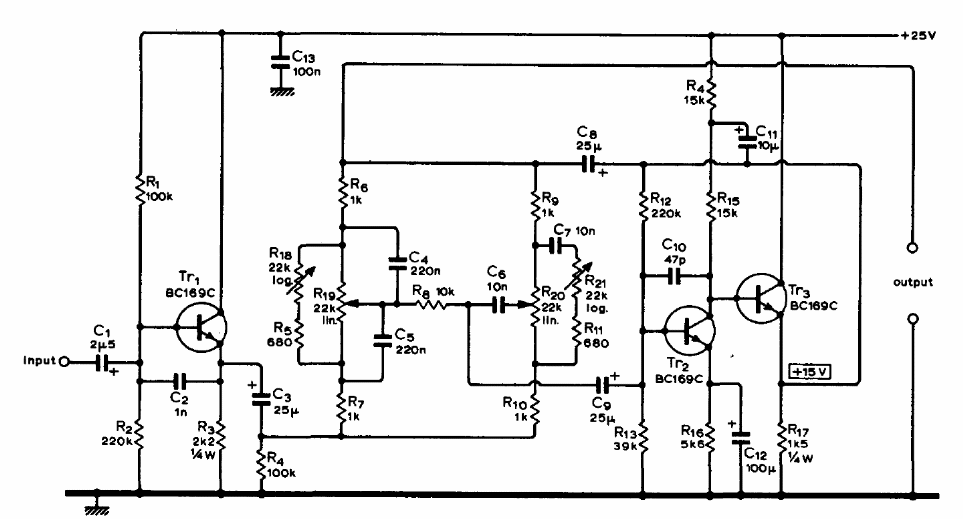

We found this circuit in a 1974 technical documentation. The circuit can be made with BC549 transistors instead of BC169. The power supply must have excellent filtration and the signal cables must be shielded.
| Clique na imagem para ampliar |
Improved Baxandall (CB13692E)
- Details
- Written by: Newton C. Braga
