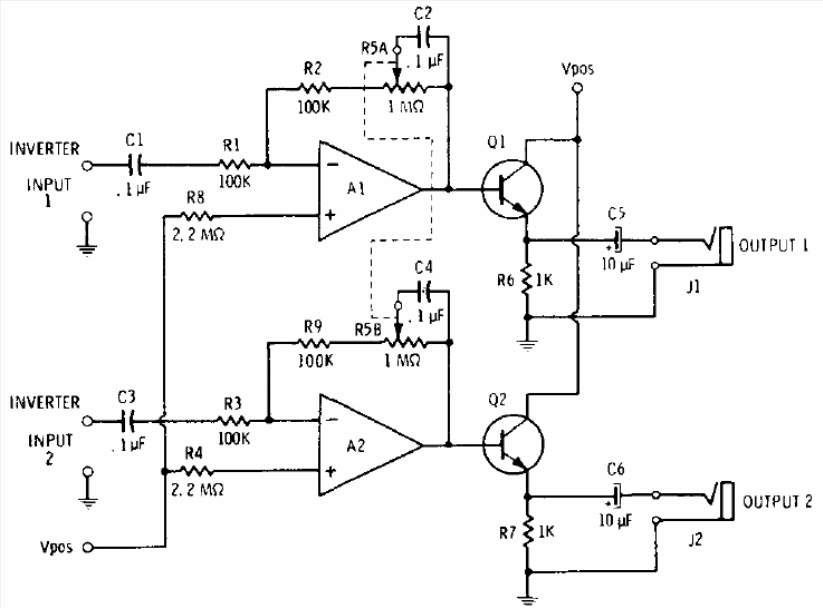

This small stereo amplifier for headphones was found in a documentation on integrated circuits from 1975. The transistors can be 2N2222 and the power can be made with voltages from 9 to 15 V. The circuit is for low and medium impedance headphones.
