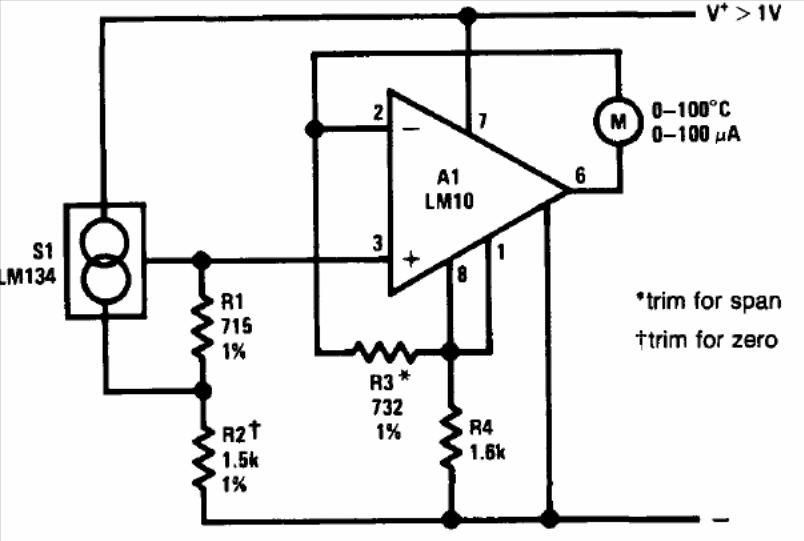

The operational amplifier and the sensor used in this National Semiconductor circuit are not common today, but the configuration can be adapted to use current components.
| Clique na imagem para ampliar |
Electronic Thermometer LM10 (CB14328E)
- Details
- Written by: Newton C. Braga
