Precision Comparator LM3900 (CB14209E)

Details
Written by: Newton C. Braga

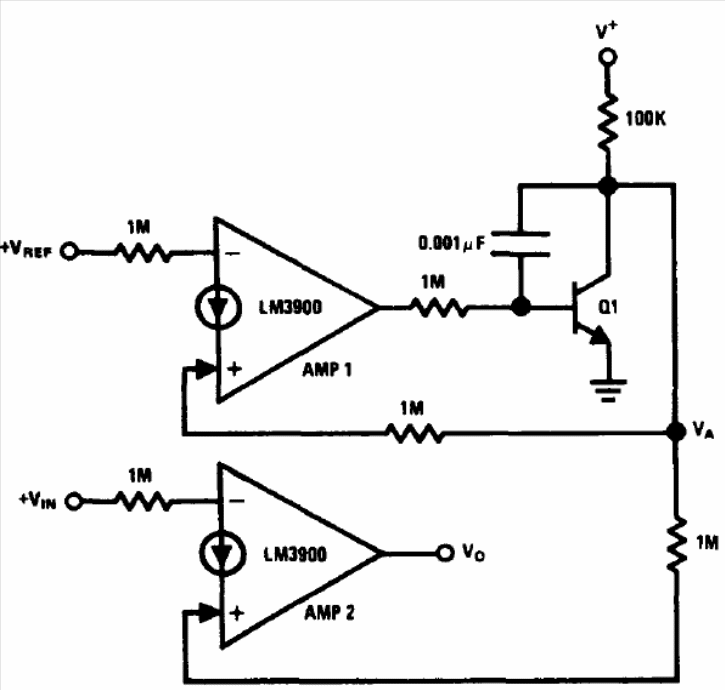

We found this circuit in the Linear Applications Handbook by National Semiconductor. It uses the LM3900, an operational transconductance amplifier as a base. Q1 can be a 2N2222 or similar.




| Clique na imagem para ampliar |
