Clock Oscillator LM139 (CB14234E)

Details
Written by: Newton C. Braga

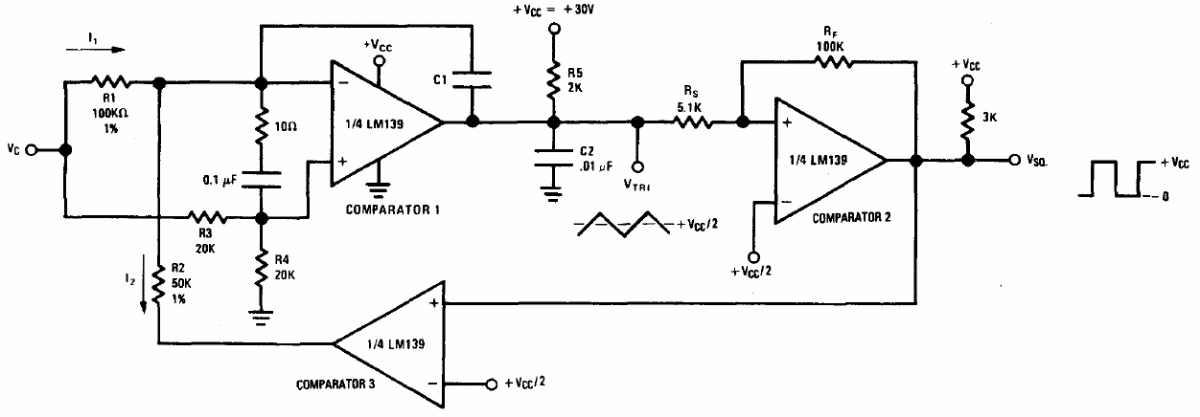

We found this configuration in the Linear Applications Handbook of the National Semiconductor of 1994. The circuit makes use of 3 comparators of the four existing in an LM139 and does not need a symmetric power source.
