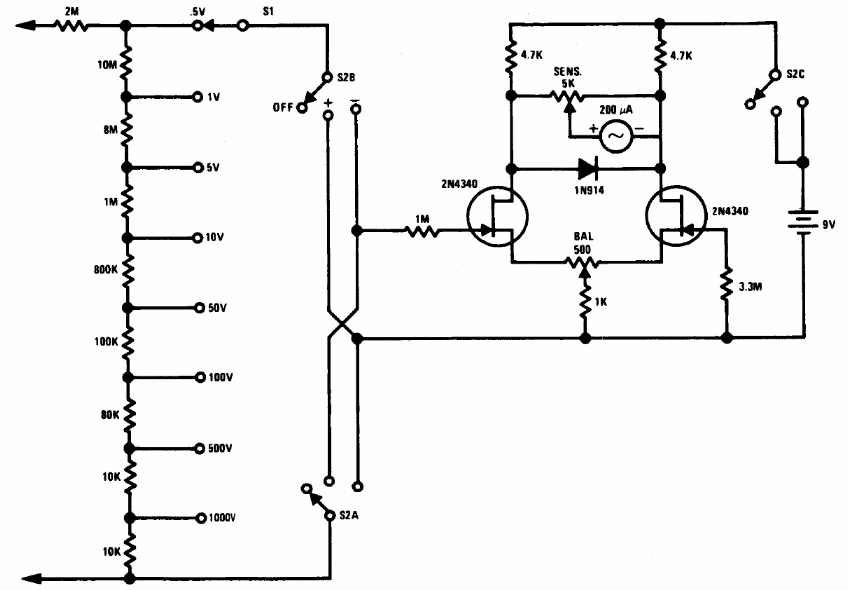

This common configuration of voltmeter with differential pair of FETs was obtained in the 1994 Linear Applications Handbook by National Semiconductor of 1994. The circuit has low consumption, and the precision depends on the resistors used in the input divider network. FETs can be BF245.
