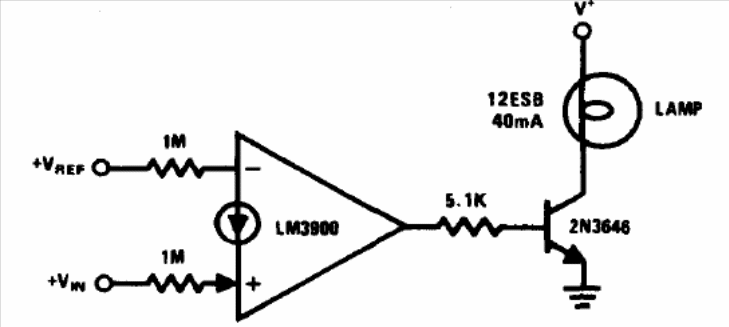

The circuit is from National Semiconductor's Linear Applications Handbook. The operational amplifier is a transconductance type and the transistor can be the BC548 for loads up to 50 mA and the BD135 for loads up to 500 mA. The voltage depends on the controlled load.
