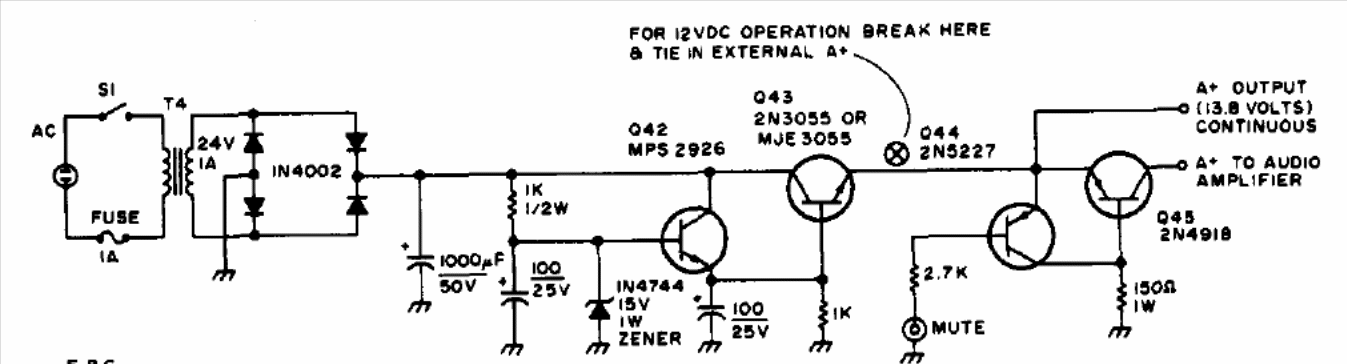

This circuit is from a documentation for 1976 radio amateurs. We can implement this circuit with more modern equivalent transistors. For the power transistor we can use the TIP41 or even the 2N3055. The stage to power the amplifier can be eliminated.
