Sum and Difference Circuit (CB13926E)

Details
Written by: Newton C. Braga

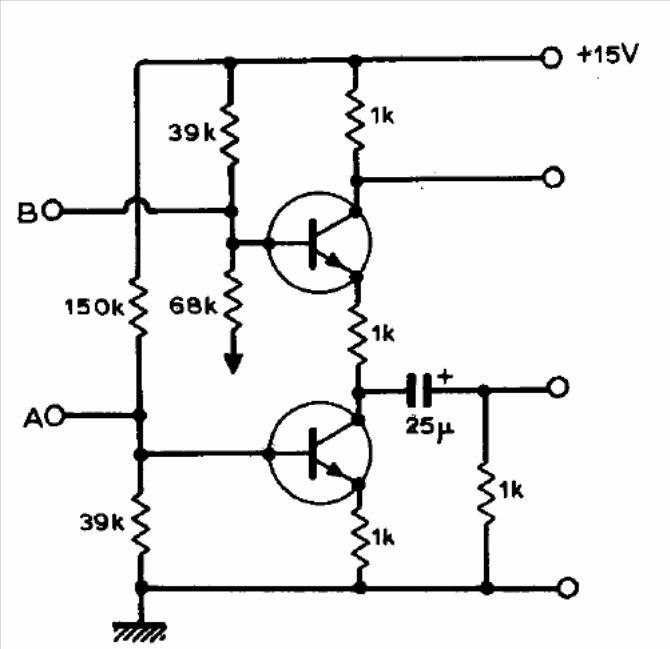

The circuit transistors, found in a 1974 documentation, may be the BC548. The circuit is used in quadriphonic systems to combine signals.




| Clique na imagem para ampliar |
