LM10 Voltage Indicator (CB14326E)

Details
Written by: Newton C. Braga

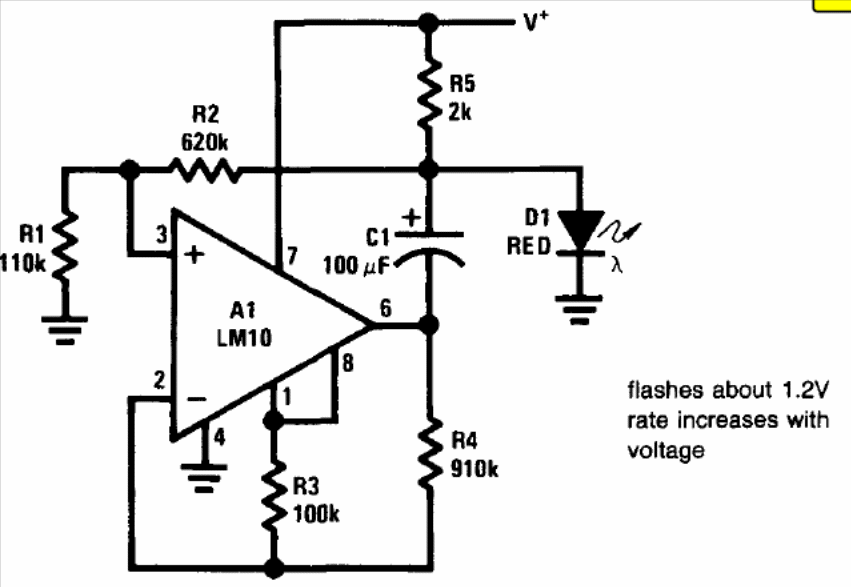

The LED blinks increase in speed with voltage. The circuit is from National Semiconductor's Linear Applications Handbook. The LM10 is uncommon today, but the circuit can be adapted to operate with an equivalent.
