LED Display for ASCII Code (CB13762E)

Details
Written by: Newton C. Braga

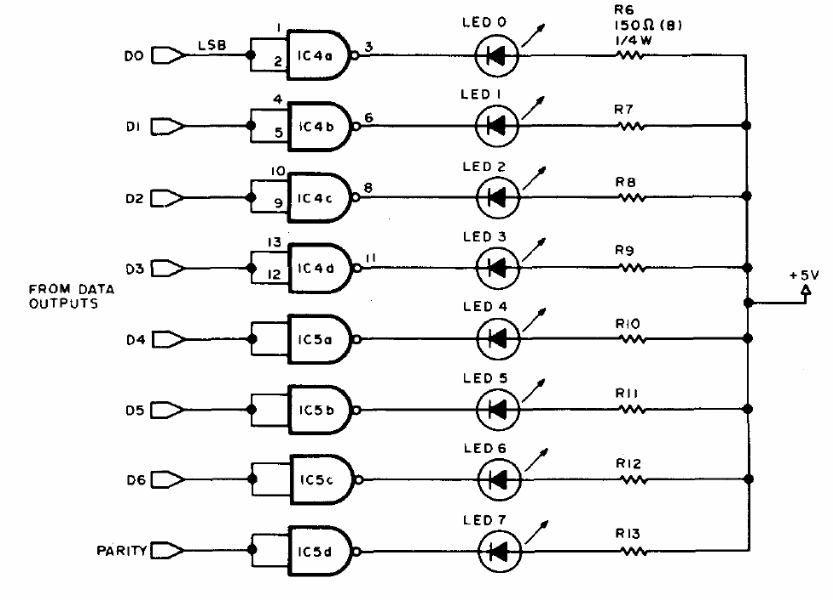

This circuit was found in a 1977 documentation. With it we have the direct indication, through LEDs of an ASCII signal. The circuit must be powered by a voltage of 5 V.




| Clique na imagem para ampliar |
