Triac triggering LM3909 (CB14291E)

Details
Written by: Newton C. Braga

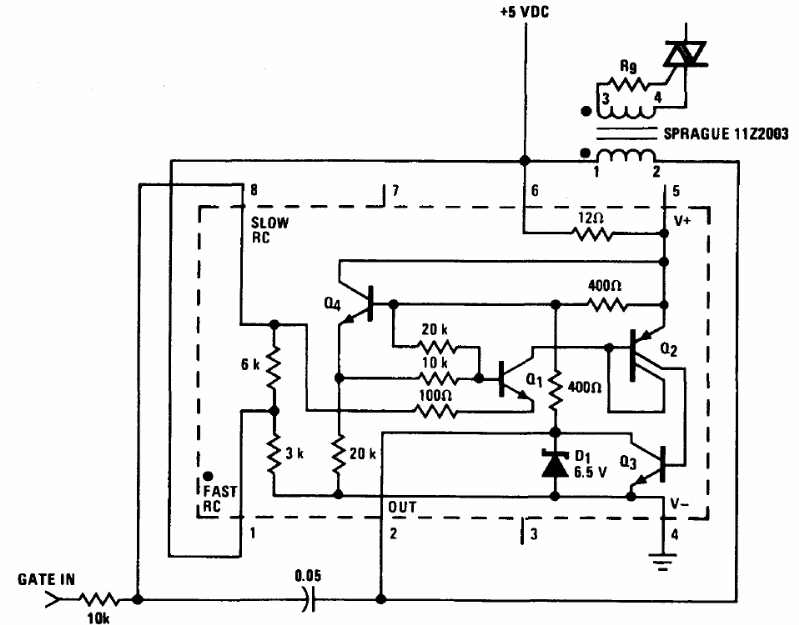

This circuit is from a technical documentation on the National Semiconductor LM3909. The tripping transformer has a 1:1 turn ratio and the circuit is powered with 5V.




| Clique na imagem para ampliar |
