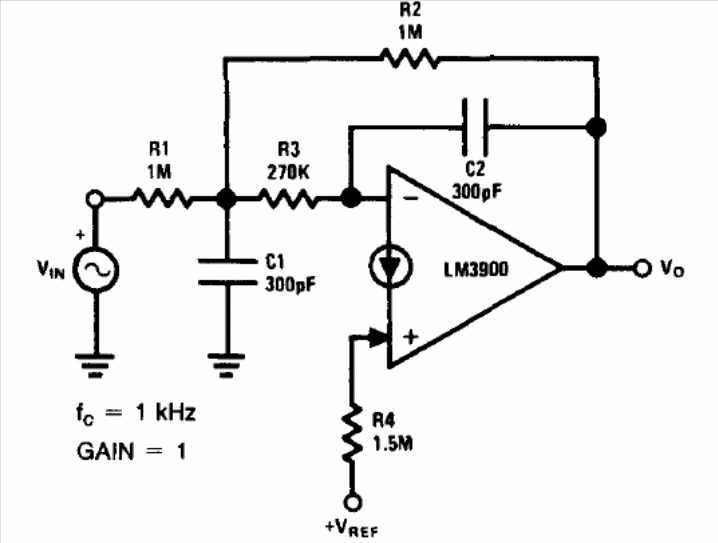

The circuit shown below is from the National Semiconductor's 1994 Linear Applications Handbook. The circuit is based on a transconductance operational amplifier and C1 and C2 can be changed for operation on other frequencies.
