0 to 70 V x 4 A Regulator LM12 (CB14399E)

Details
Written by: Newton C. Braga

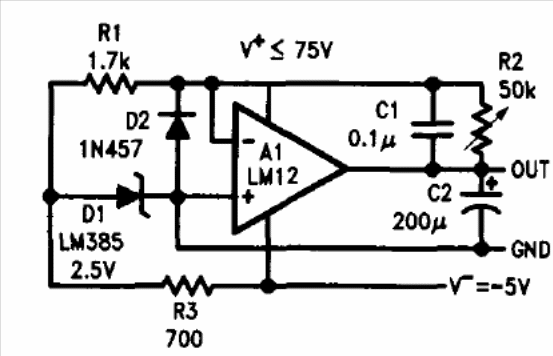

The circuit presented uses the high-power operational amplifier LM12, which is currently not an easy component to obtain. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
