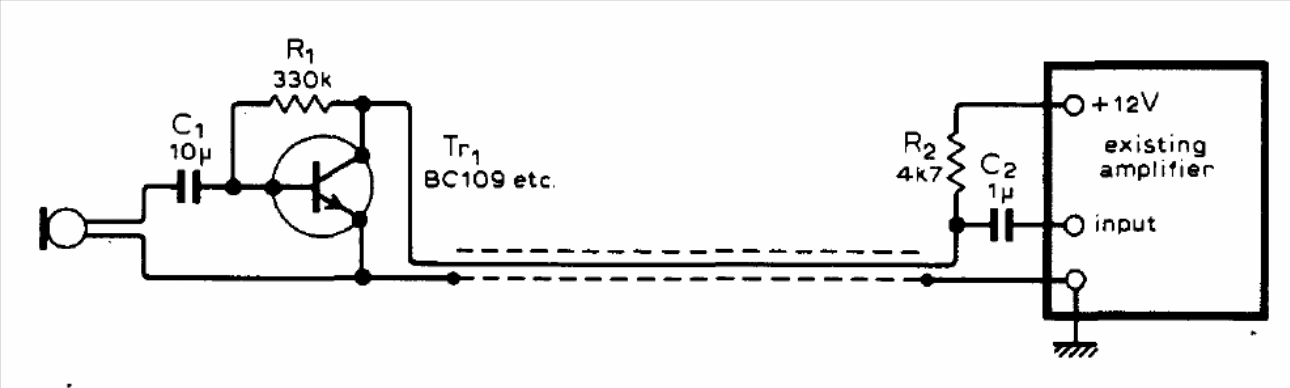

The transistor of this remote preamp can be the BC549. We found this circuit in a 1976 technical document. In it we have the way to feed a remote preamplifier through the microphone cable itself, without using a battery.
