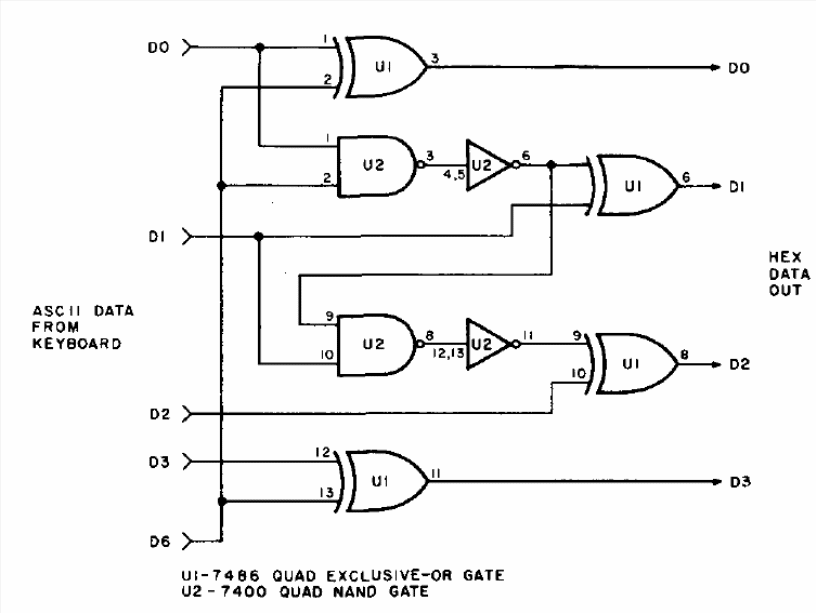

ASCII to Hexadecimal Converter (CB13761E)

This TTL circuit was found in a 1978 technical documentation. The power must be supplied with 5 V. It converts ASCII characters to hexadecimal.

| Clique na imagem para ampliar |
