Negative Output Monostable LM3900 (CB14206S)

Details
Written by: Newton C. Braga

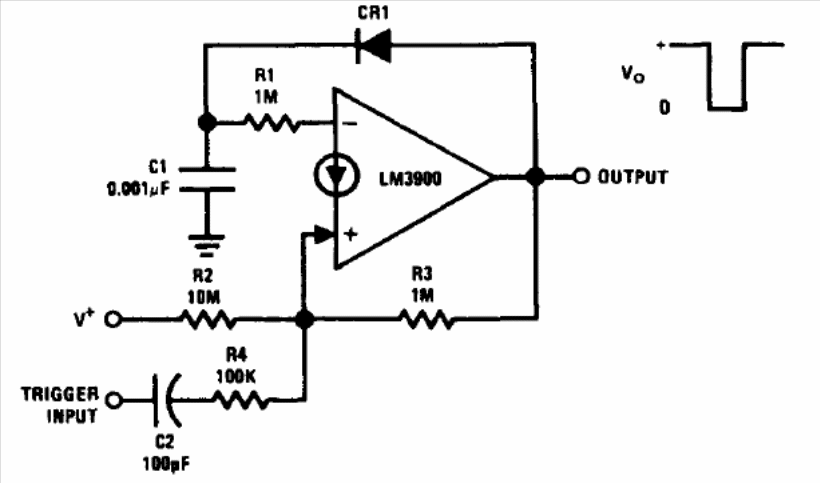

The circuit presented is suggested by National Semiconductor in its Linear Applications Handbook. The circuit uses an LM3900, operational transconductance amplifier. The diode is a general-purpose type.
