Low Impedance Preamplifier (CB13760E)

Details
Written by: Newton C. Braga

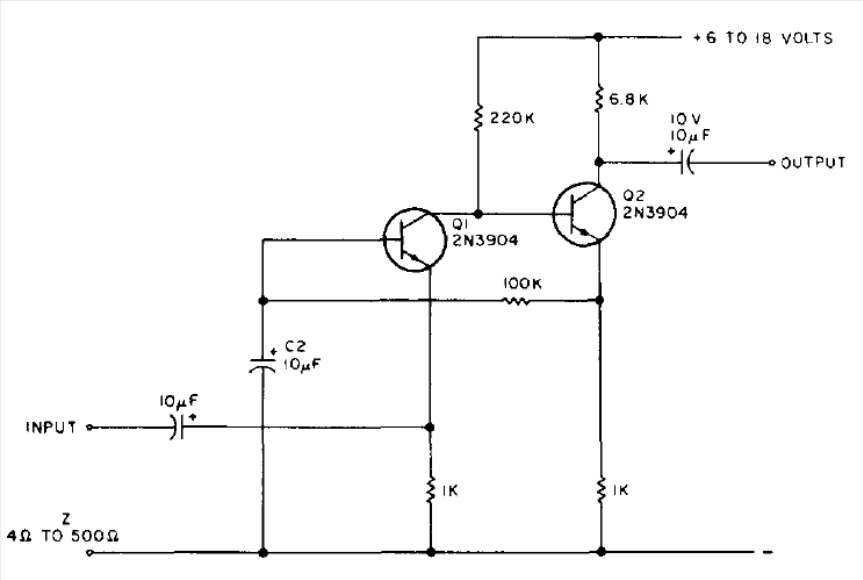

We found this circuit in a documentation for radio amateurs from the 70s. The transistors can be the BC548. With it, small speakers of 4 or 8 ohms can be used as microphones.
