CMOS Frequency Meter Up to 12 MHz (CB13726E)

Details
Written by: Newton C. Braga

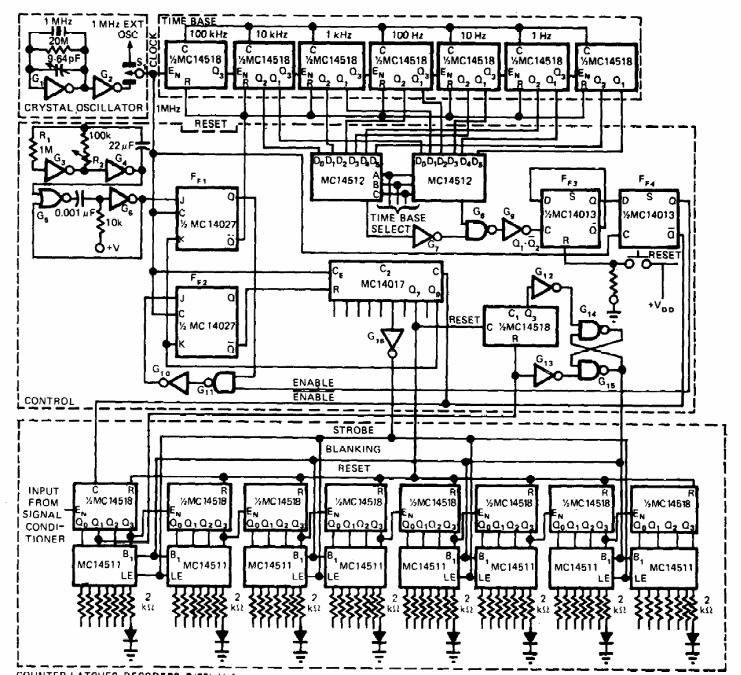

We found this frequency meter circuit in a 1974 documentation. The circuit is powered by 12 V and has 8 digits. Changes can be made using a prescaler to reach higher frequencies.




| Clique na imagem para ampliar |
