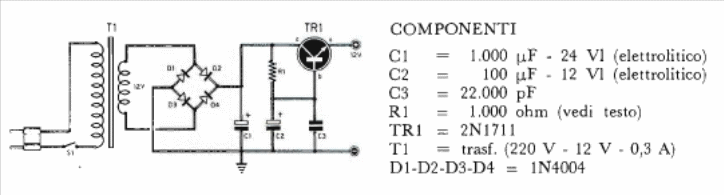

This power source, found in an Italian publication Elettronica Prática number 9, from 1977, supplies currents up to about 200 mA. The current can be higher with the BD135. The transformer is 12 V with at least 250 mA.
