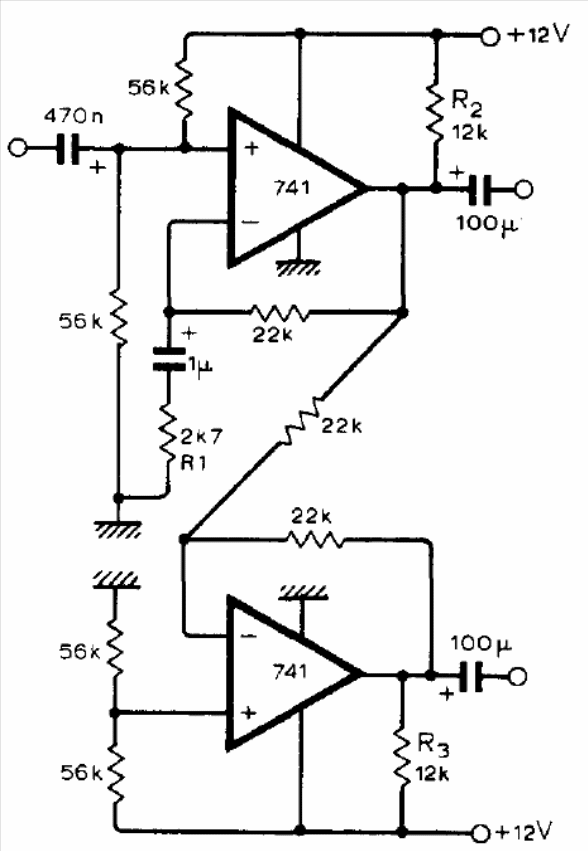

This circuit was found in a 1975 documentation. Operational amplifiers must have a symmetrical source and the frequency response ranges from 10 to 20 000 Hz. The gain is 20 dB and other operational amplifiers can be used.
741 Preamplifier with Balanced Output (CB13673E)
