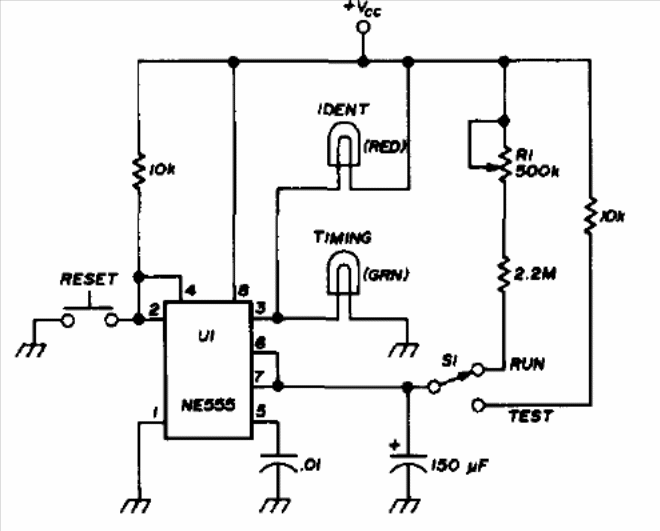

This timer, from an old American publication, uses indicator lamps, but can be modified to use LEDs in series with 1 k resistors. The circuit provides 7 to 11-minute intervals, set to R1. The supply, for LEDs, can be done with voltages from 5 to 12 V.
| Clique na imagem para ampliar |
