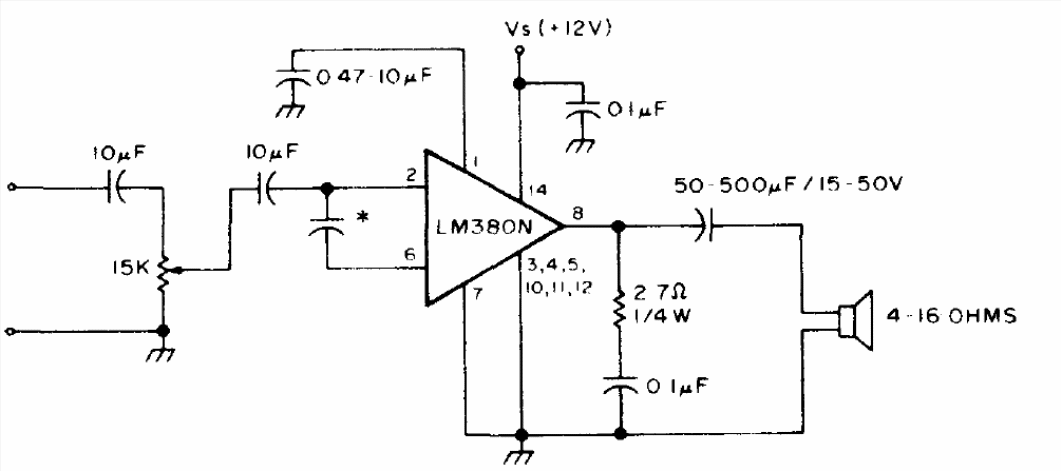

This circuit was obtained in a Radio Shack documentation from 1977. It can be used as a multimedia sound, reinforcer for media with headphones with MP3, etc. Power is provided by batteries or 9 V power supply.
| Clique na imagem para ampliar |
Audio Booster 500 mW LM380 (CB13759E)
- Details
- Written by: Newton C. Braga
