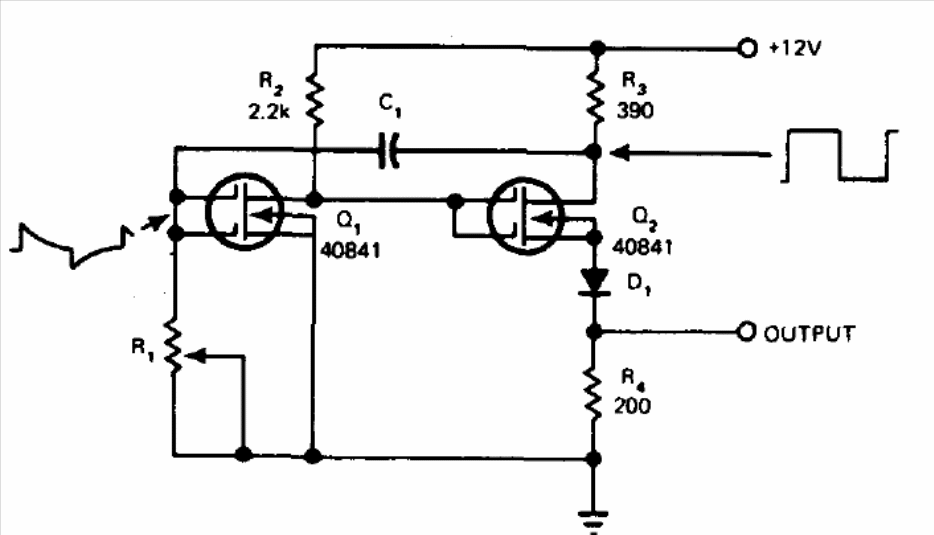

This circuit is from an old RCA MOSFET manual from the 70s. The circuit can be implemented with any dual-gate MOSFET. The frequency depends on C1 and the setting of R1. The waveforms of the generated signals are in the diagram.
| Clique na imagem para ampliar |
