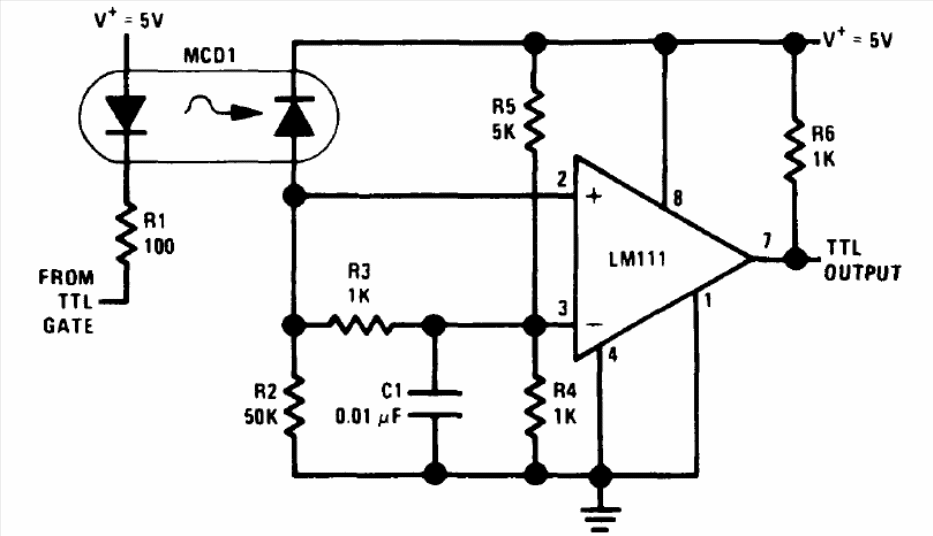

The shield circuit shown is from the 1994 Linear Applications Handbook by National Semiconductor of 1994. The circuit can be implemented with other operational ones and the optical coupler is not critical. The voltage source is 5 V.
