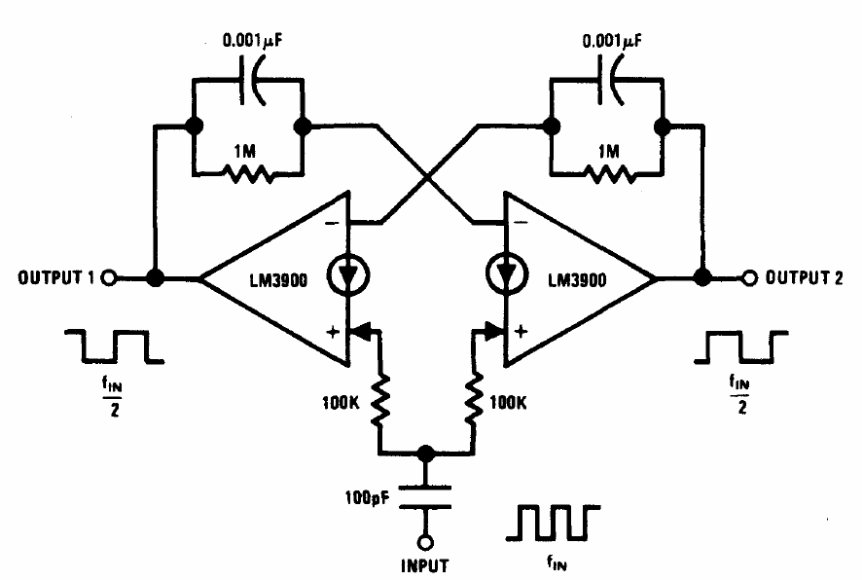

The presented configuration, using two operational transconductance amplifiers, can divide the frequency of a signal by 2. The circuit was found in the 1994 Linear Applications Handbook by National Semiconductor.
| Clique na imagem para ampliar |
Flip Flop with Two Operational LM3900 (CB14204E)
- Details
- Written by: Newton C. Braga
