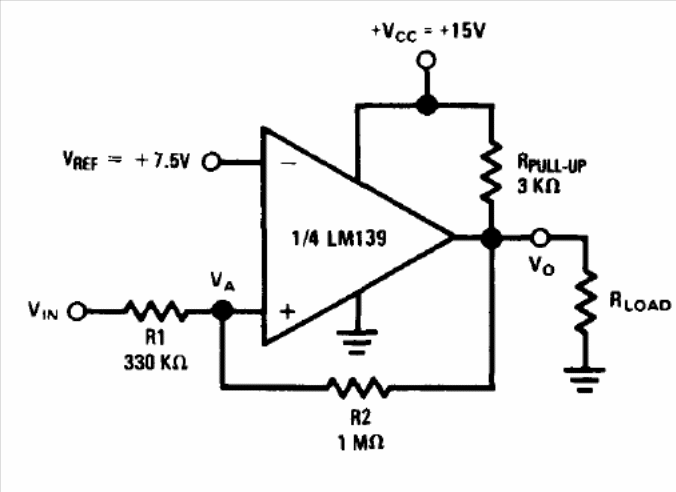

The circuit presented was suggested by the National Semiconductor's Linear Applications Handbook of 1994. The circuit does not need a symmetrical source.
| Clique na imagem para ampliar |
Non-Inverting Comparator with Hysteresis (CB14228E)
