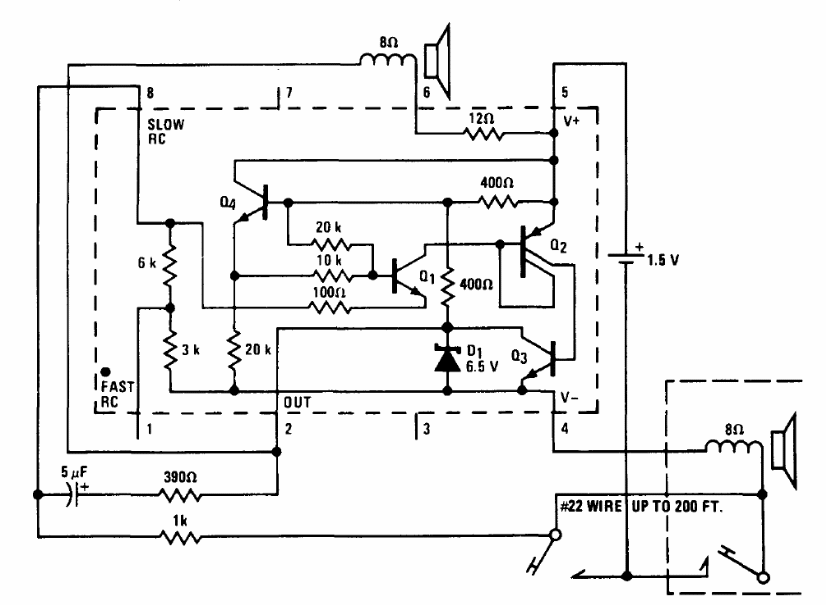

The short-wired circuit is suggested by National Semiconductor in documentation on the LM3909. The power is provided by a single battery and the frequency given by the capacitor that can be changed.
| Clique na imagem para ampliar |
Experimental Telegraph LM3909 (CB14287E)
