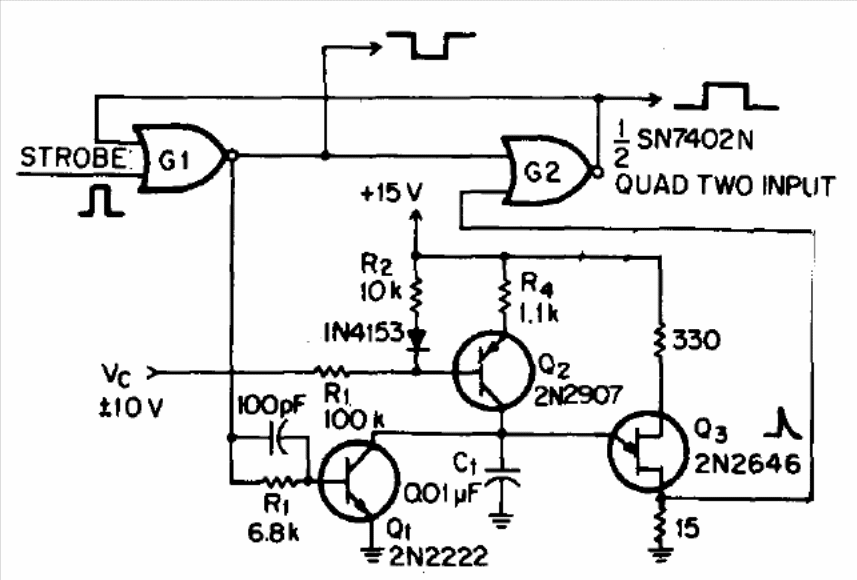

With this circuit it is possible to modulate pulses from a pulsating input signal. The PNP transistor can be the BC558 and the power must be supplied with 5 V.
| Clique na imagem para ampliar |
Monostable PWM (CB13815E)
- Details
- Written by: Newton C. Braga
