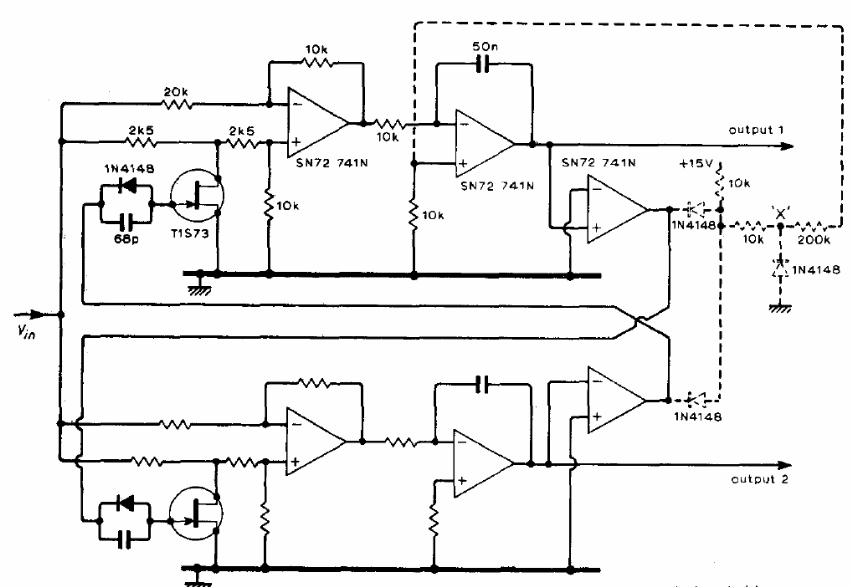

This circuit was found in an English technical documentation from 1973. The circuit generates two-phase signals controlled by an external voltage. The FETs can be the BF245 or MPF102 and the supply of the operational ones must be made from a symmetrical source.
