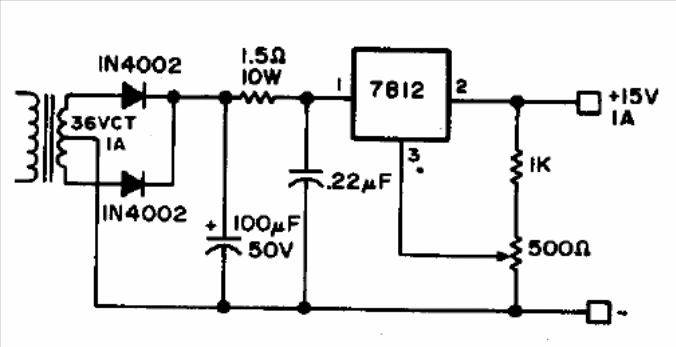

This circuit shows how to use a 12 V regulator to obtain a higher voltage output. The potentiometer must be 470 ohms since the indicated value is not currently standardized. The integrated circuit must be equipped with a heat radiator.
