This circuit was obtained in the National Semiconductor Linear Applications Handbook of 1994. The integrated circuit used can still be found today. The supply can be done with voltages from 6 to 12V.
| Clique na imagem para ampliar |

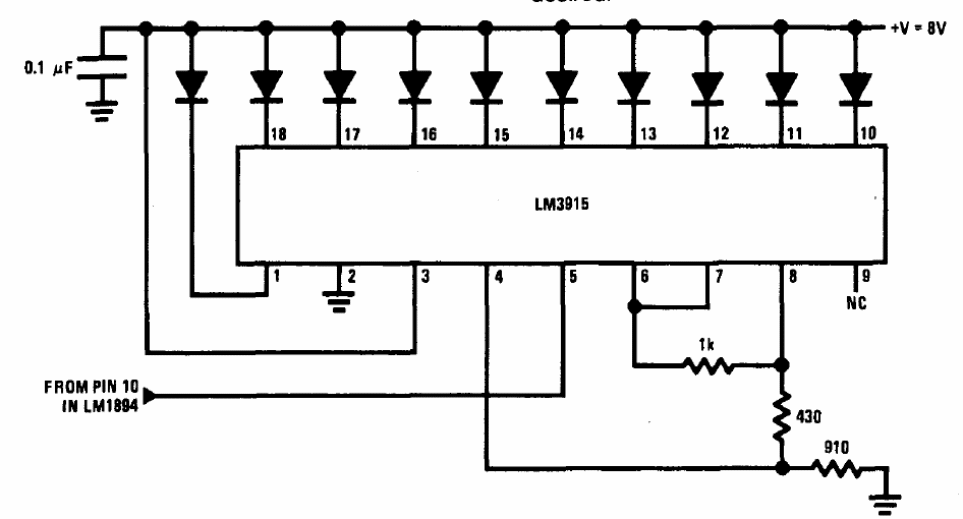

Bargraph Peak Detector LM3915 (CB14385E)
