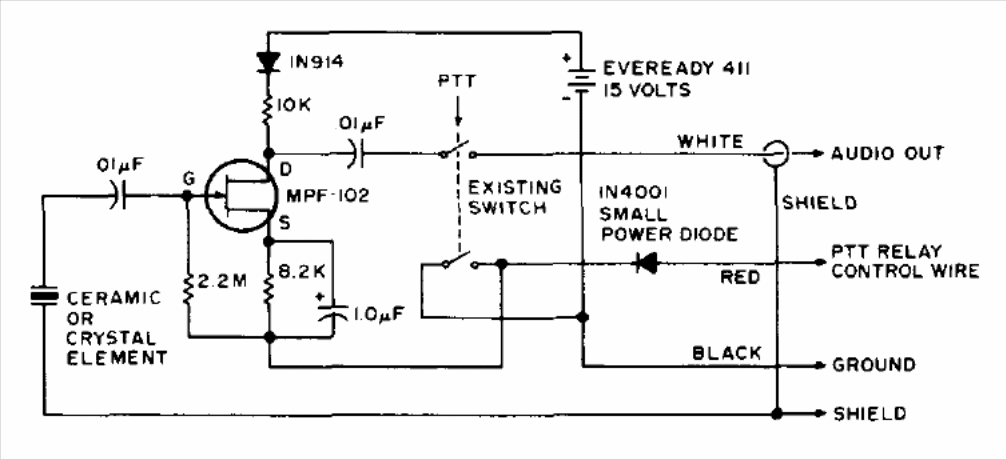

Originally this piezoelectric microphone preamp was designed to be built-in, but given the use of a 15 V battery, which is no longer easily found, its use must be made with a source. The FET can also be the BF245. The circuit is from 1976 documentation.
| Clique na imagem para ampliar |
