0.01 Hz to 7 MHz TTL Astable (CB13814E)

Details
Written by: Newton C. Braga

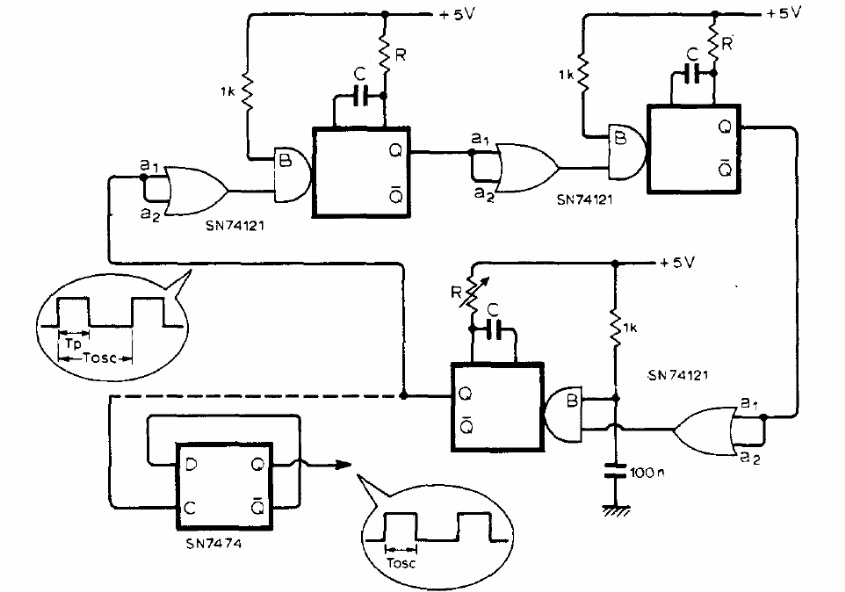

This oscillator was found in a 1976 documentation. The no specified components indicate circuit timings in the range of 150 ns to 120 seconds. The supply must be made with 5 V.
