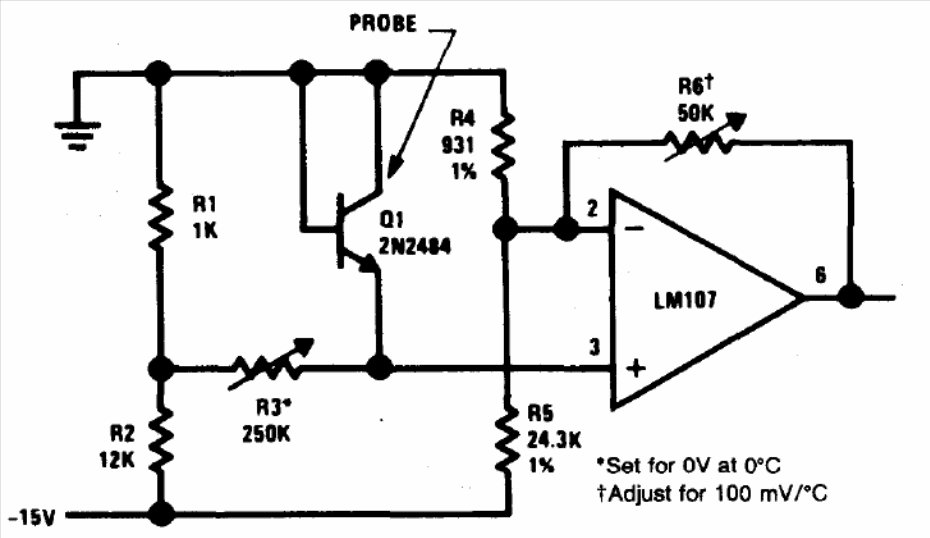

The circuit shown was found in the 1994 National Semiconductor Linear Applications Handbook. The circuit can be implemented with other operational ones and the sensor is a silicon transistor that can be of any type. The circuit requires symmetrical power supply.
