Comparator with Hysteresis (CB14227E)

Details
Written by: Newton C. Braga

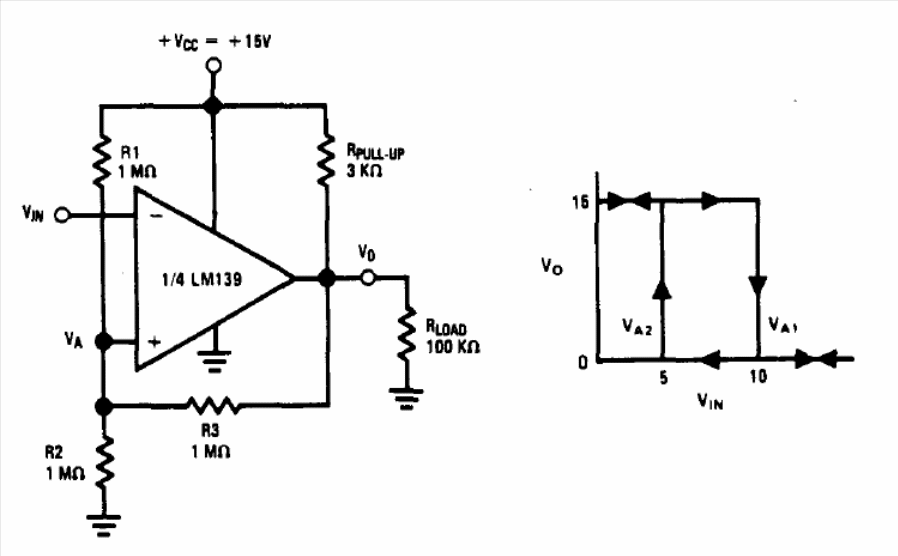

This hysteresis comparator was found in the 1994 National Semiconductor Linear Applications Handbook. The circuit does not need a symmetric power source and the hysteresis is given by R3, R1 and R2.




| Clique na imagem para ampliar |
