Wien Bridge Oscillator (CB14110E)

Details
Written by: Newton C. Braga

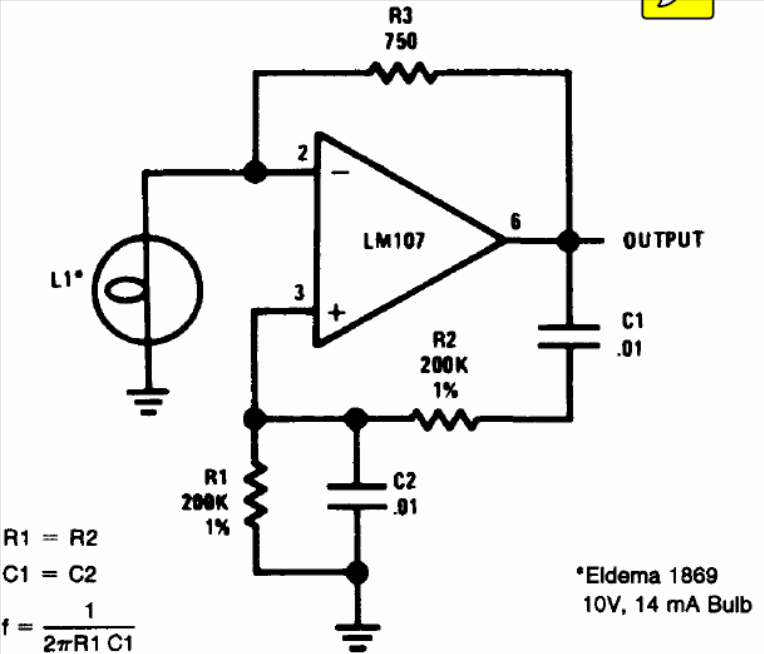

This oscillator was found in the 1994 National Instruments Linear Applications Handbook. The critical component is the stabilizer lamp. The circuit can be implemented with modern components and the symmetrical power supply.




| Clique na imagem para ampliar |
