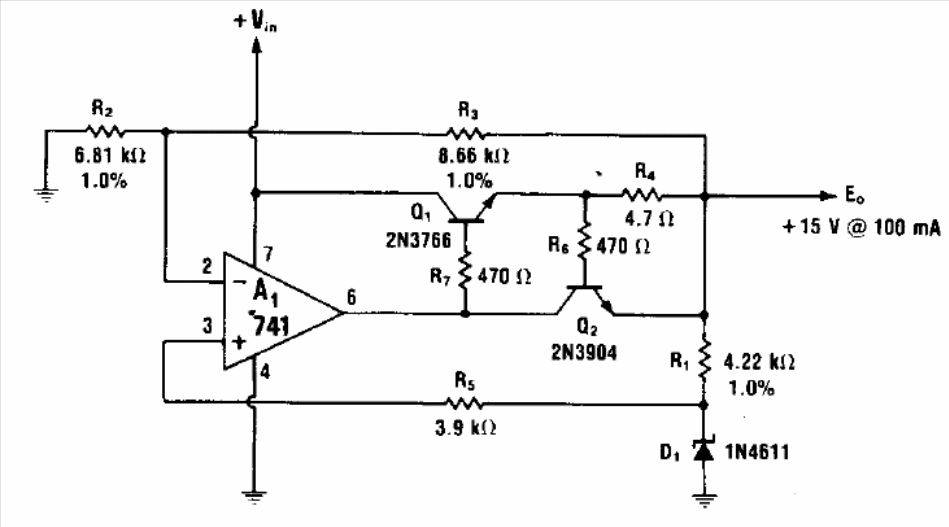

We found this circuit in a 1974 documentation. The NPN transistor can be the BD135 and the PNP the BC548. The circuit uses a 15 V zener. The operating system does not need a symmetrical source and the input voltage must be at least 2 V higher than the output voltage.
| Clique na imagem para ampliar |
