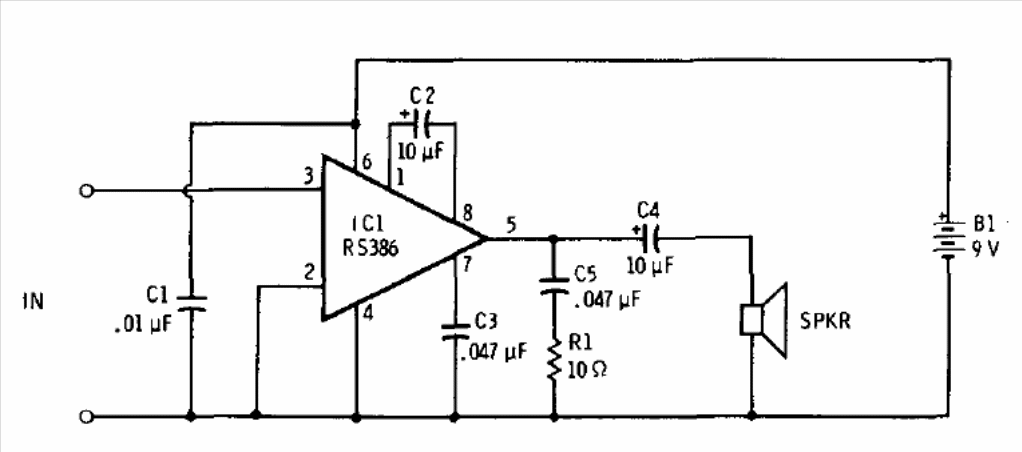

The integrated circuit shown in the figure is nothing more than the LM386 sold by Radio Shack, according to 1977 documentation. Powered by 9 V the circuit provides 250 mW. The circuit can also be powered by 6 V with less power and its gain is 200.
