Current Regulator LM117 (CB14304E)

Details
Written by: Newton C. Braga

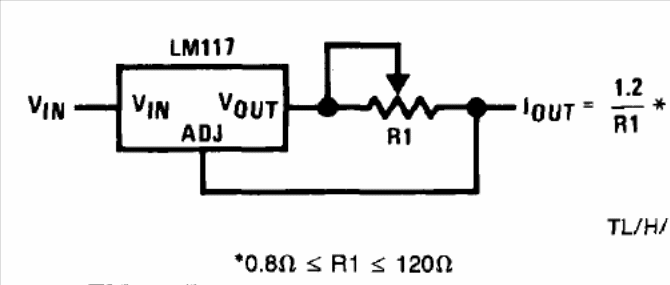

The circuit shown has a maximum output current of 1.5 A. We find this traditional configuration in the Linear Applications Handbook by National Semiconductor. R1 must be wire.
