Transformerless Microphone Preamplifier (CB14384E)

Details
Written by: Newton C. Braga

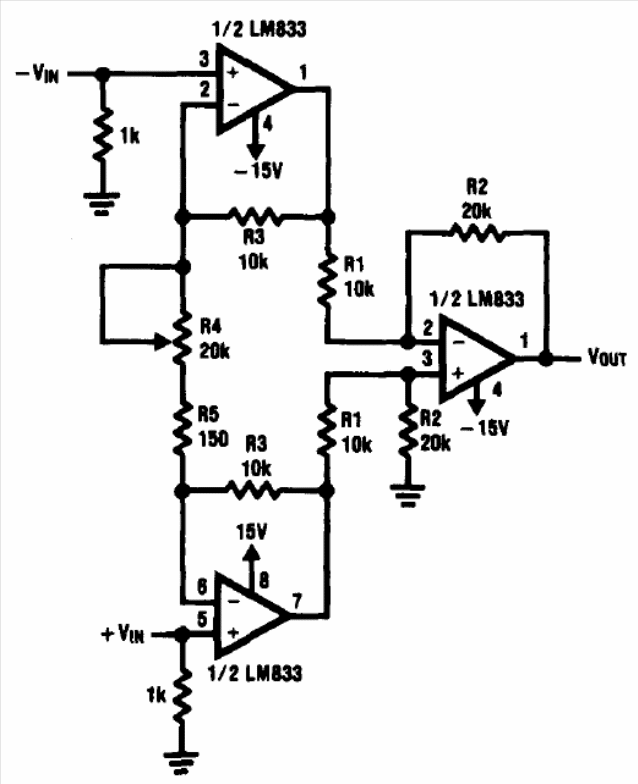

This circuit is based on the operational amplifier LM833 which is not a common component today. The circuit is from the 1994 National Semiconductor Linear Applications Handbook, requiring a symmetrical power supply.
