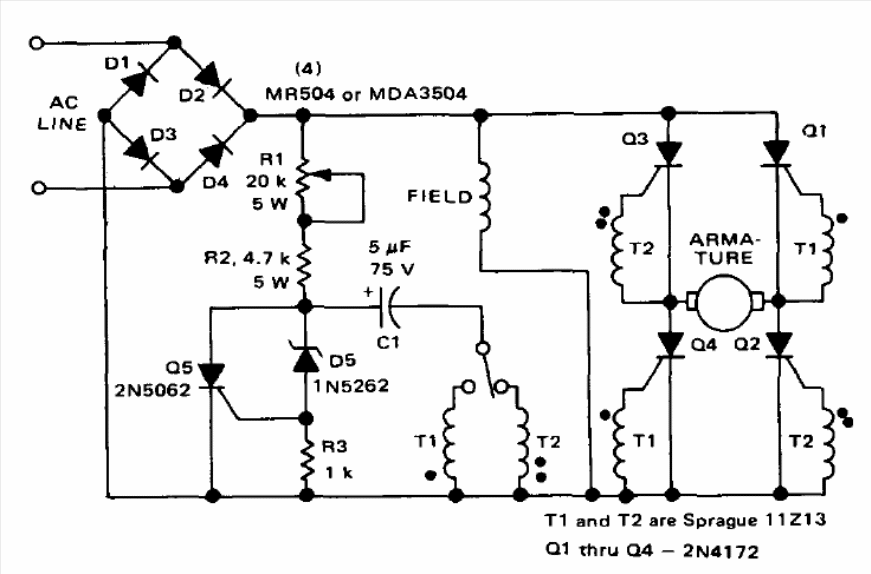

This circuit is from Motorola documentation on 1976 power devices. SCRs are powered according to the motor controlled, as well as the bridge diodes. The transformers are pulse type with a 1: 1 turn ratio. The trigger SCR Q5 can be the TIC106.
