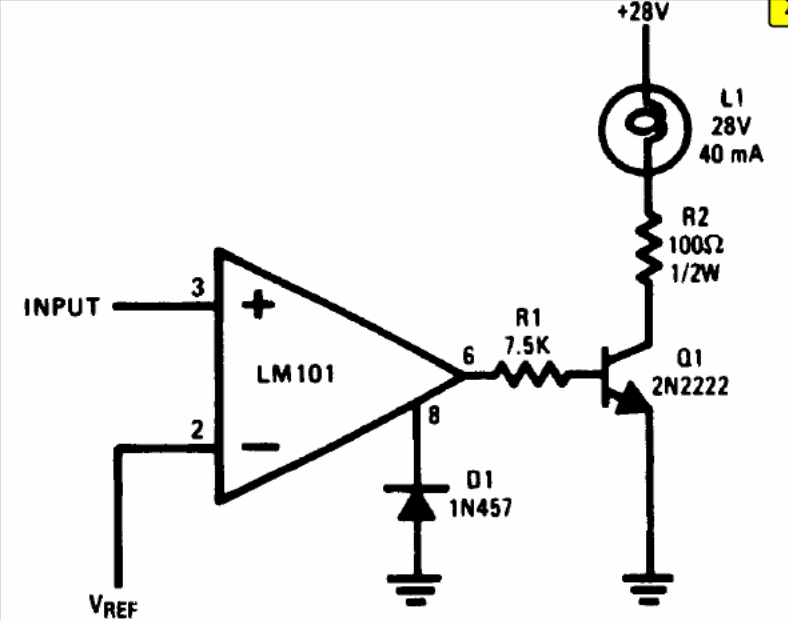

The circuit shown is from a 1994 National Semiconductor technical documentation. The circuit can be changed to operate with other operational, other supply voltages depending on the load, which can also be formed by LEDs.
| Clique na imagem para ampliar |
