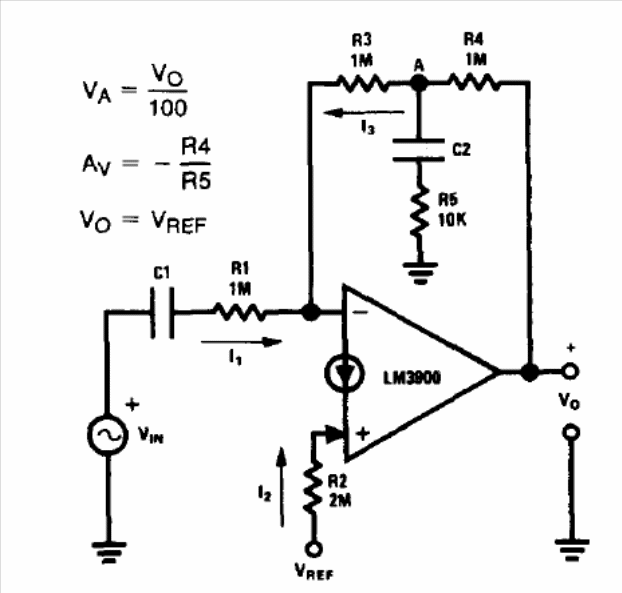

The figure below shows an AC transconductance amplifier with the National Semiconductor LM3900. The circuit was found in the Linear Applications Handbook and has the formulas for calculating the components given next to the diagram.
