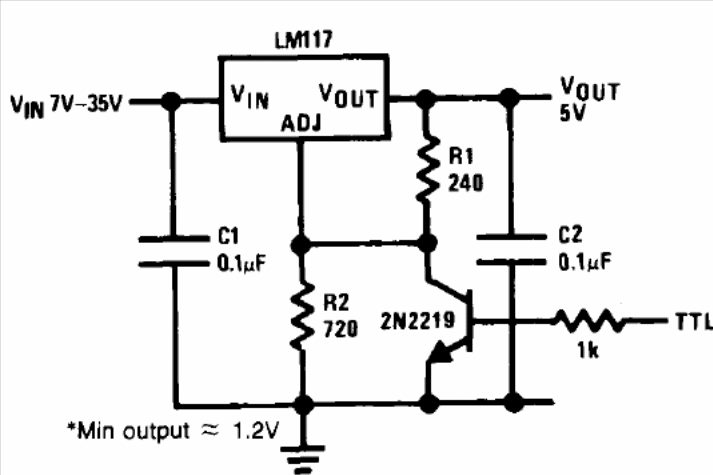

The circuit presented was found in the Linear Applications Handbook of the National Semiconductor of 1994. The integrated circuit must have a heat radiator. The circuit has external logic control to disable it.
| Clique na imagem para ampliar |
1.5 A TTL regulator LM317 (CB14303E)
