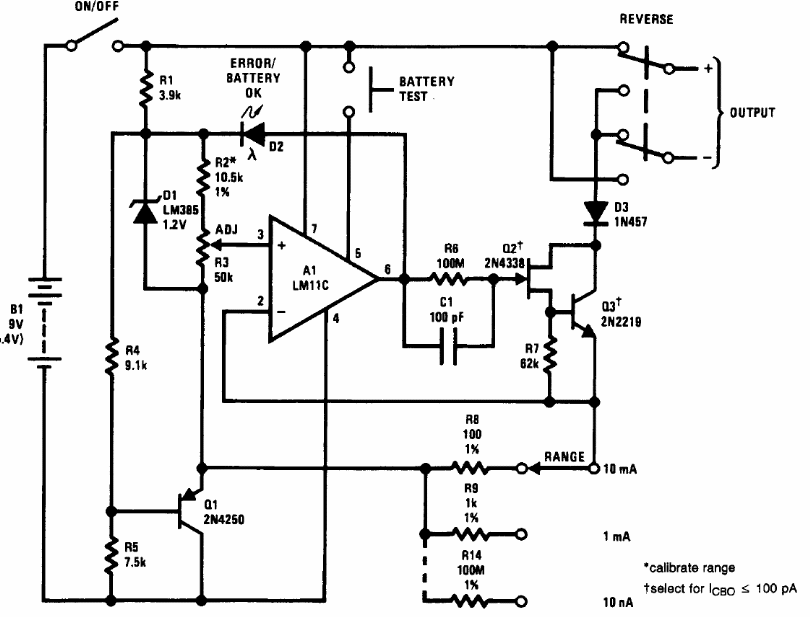

We found this circuit in the Linear Applications Handbook of the National Semiconductor of 1994. The operational amplifier used is uncommon today, but the circuit can be adapted to operate with a more modern equivalent.
| Clique na imagem para ampliar |
