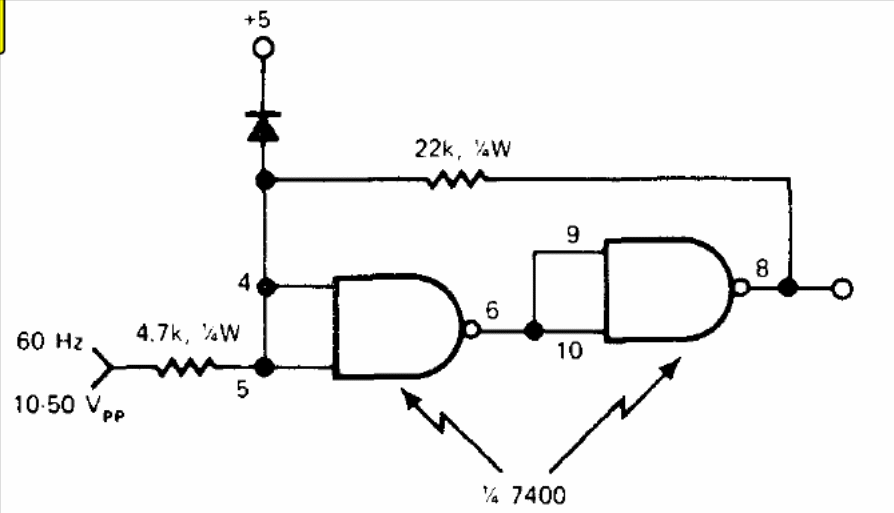

In the figure we have the way to implement a TTL Schmitt trigger for 60 Hz signals, obtaining pulses at this frequency. The circuit must be powered by 5 V and the diode is for general use. The circuit can be used in microcontrolled applications.
