We found this configuration in the Linear Applications Handbook of the National Semiconductor of 1994. Both the integrated circuit and the transistor Q1 must be mounted on radiators. Transistors admits equivalents.
| Clique na imagem para ampliar |

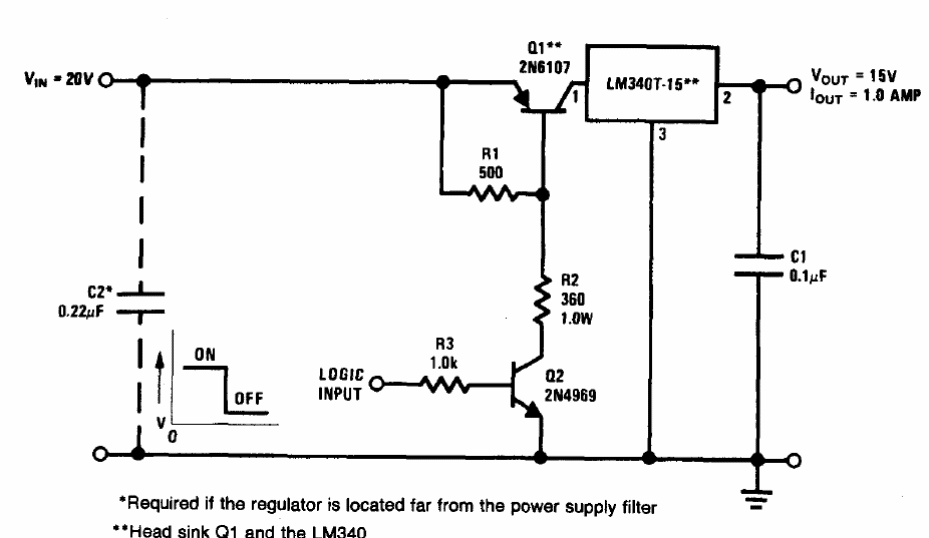

15 V x 1 A power supply with Shutdown LM340 (CB14264E)
