High Voltage Inverter LM3900 (CB14224E)

Details
Written by: Newton C. Braga

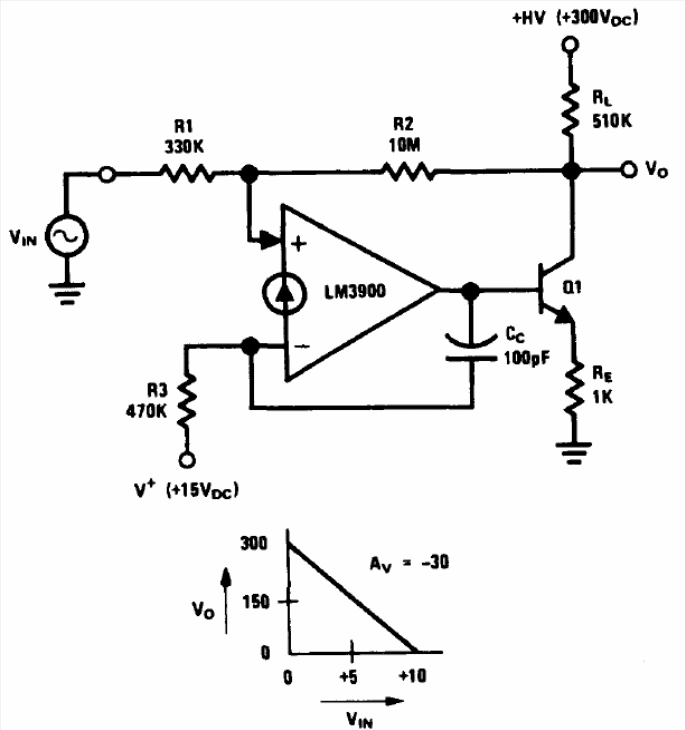

We found this circuit in the Linear Applications Handbook of the 1994 National Semiconductor. The transistor must be a high voltage type and the LM3900 power supply must be symmetrical.
